Bearing Support

An efficient and silent operation of mixing shafts and screw shafts is essential in industrial processes. Proper bearing support plays a crucial role in this. At Klinkenberg B.V., we offer various bearing solutions tailored to your specific needs and applications.
Discuss the possibilities
Hygiënisch design

Importance of Proper Bearing Support

To ensure smooth and quiet operation of screw shafts, the use of suitable bearings is essential. Our screw conveyors are equipped with two bearing housings or flange bearings, strategically placed at a distance from the housing. One of these bearings is designed to absorb axial loads, contributing to the stability and durability of the system.

Choosing Between Bearing Housings and Flange Bearings

The choice depends on specific operating conditions and customer preferences:

Flange Bearings

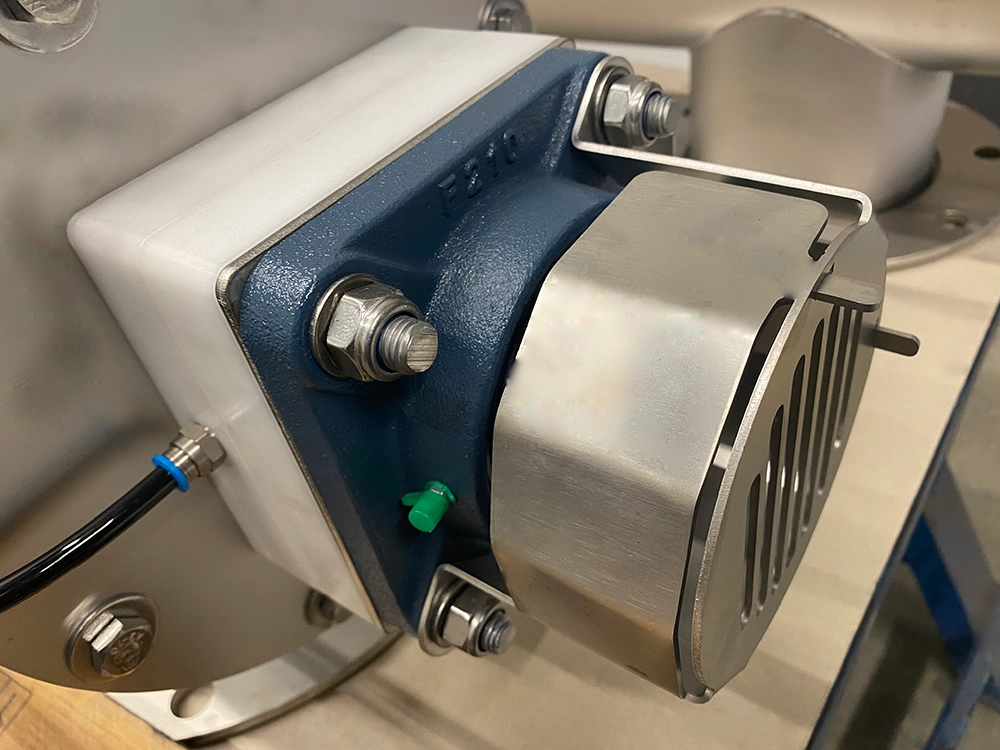

Flange Bearing Klinkenberg Zaanstad
  1. Mounting Method
    Flange bearings are mounted directly to a flat surface using bolts through an integrated flange. Ideal for wall mounting or other flat surfaces.
  2. Compact Design
    They feature a compact design and are often more suitable for space-constrained applications.
  3. Cost Efficiency
    Generally more cost-effective due to their simple design, making them ideal for budget-sensitive projects.
  4. Light Load Applications
    Best suited for lighter loads or less demanding environments. Heavier loads may reduce lifespan.
  5. Maintenance
    Harder to inspect and maintain, especially in areas with limited access.

Bearing Housings

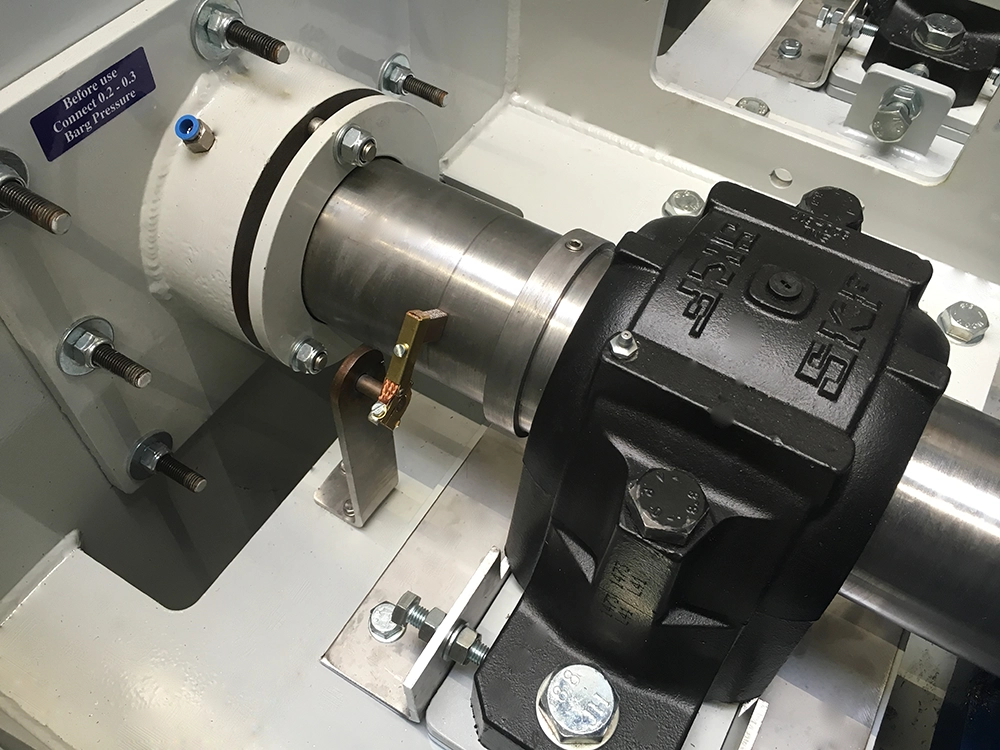

Block Bearing Klinkenberg Zaanstad
  1. Robustness
    Designed for heavier loads and demanding conditions such as high temperatures or extreme forces.
  2. Mounting Flexibility
    Typically mounted on a base plate or frame, offering more flexible positioning options.
  3. Ease of Maintenance
    Easier to inspect, lubricate, or replace, contributing to longer system lifespan.
  4. Vibration Damping
    The robust design helps dampen vibrations and absorb shocks in heavy-duty applications.
  5. Improved Heat Dissipation
    Due to their size and design, block bearings dissipate heat more effectively, supporting performance in high-temperature processes.

Maintenance and Monitoring

Our bearings are equipped with pre-lubrication to ensure long service life. For efficient lubrication, grease lines can be routed from the bearing to the side of the foundation. In ATEX zones, bearings can be equipped with temperature monitoring for added safety and control.

Onderhoud en bewaking

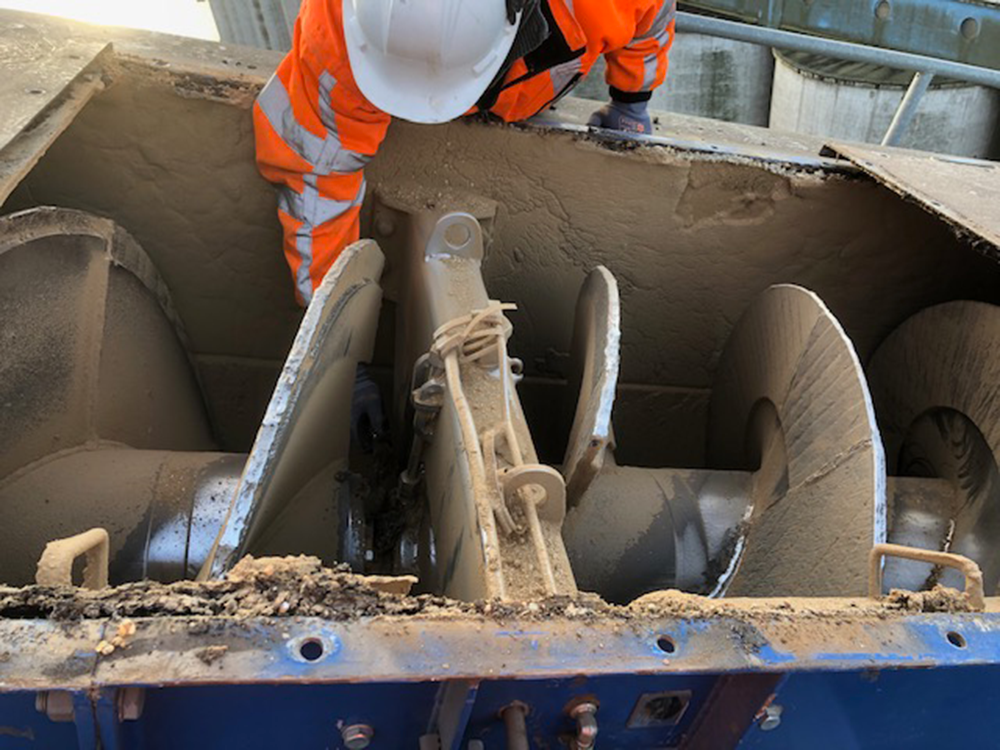

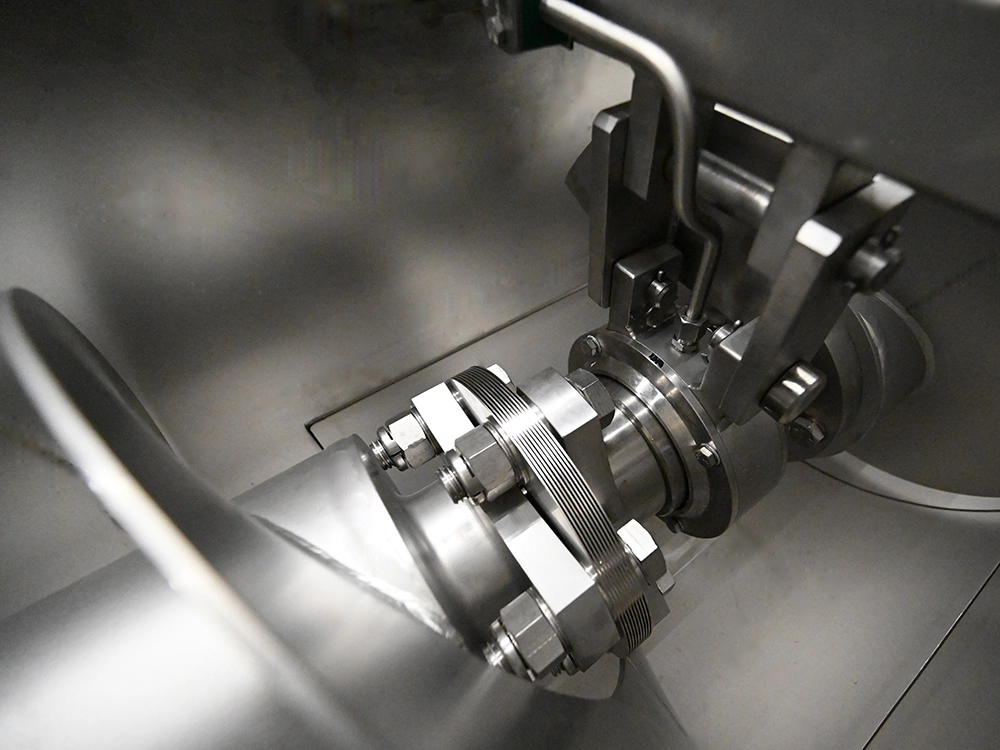

Hanger Bearing Systems for Long Screw Conveyors

For long screw conveyors, we use intermediate bearings with specially developed plate packs. These compensate for shaft stresses, minimize the impact of temperature and environmental factors, and reduce the risk of breakage. Continuous flights in each intermediate bearing minimize product buildup. The design allows for easy disassembly and assembly without removing the screw shafts.

  • Suitable for smaller screw diameters
  • Reduced bearing load thanks to plate pack
  • Can be integrated into existing systems
  • Proven concept, long service life
Hanglagersystemen voor lange schroeftransporteurs

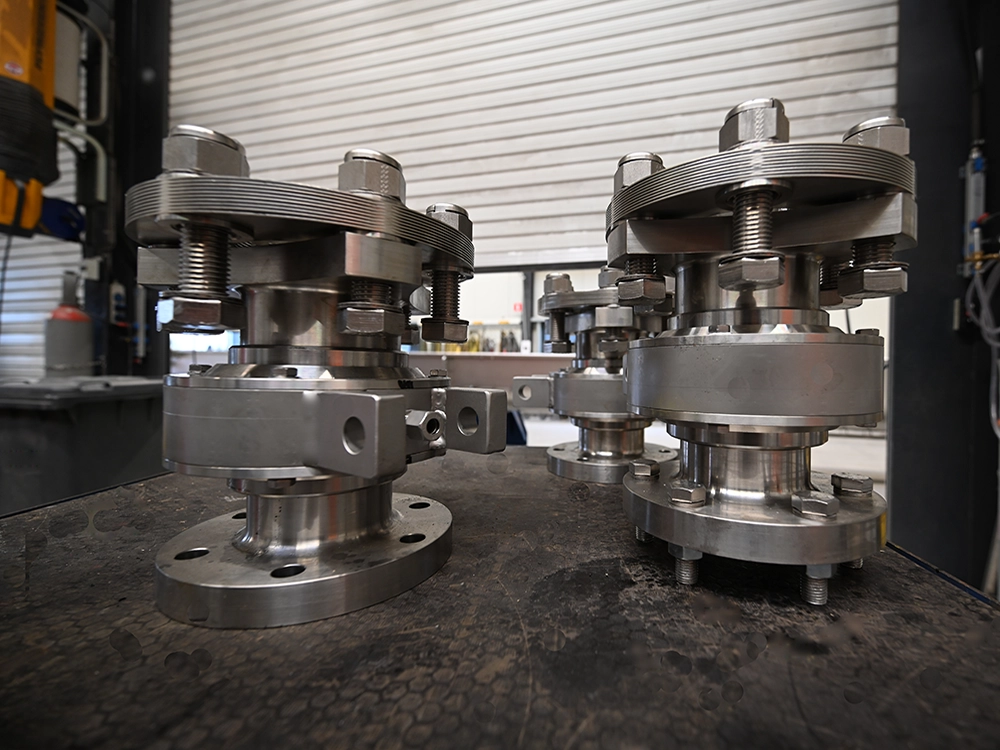

Hanger bearing Systems Optimizing Screw Conveyors with Advanced Intermediate Bearings

Intermediate bearings with plate packs are used in long screw conveyors. When long lengths are involved, these bearings help compensate for stress in the intermediate/screw shafts. The use of plate packs reduces the need for precise alignment and minimizes the influence of temperature and environmental conditions on the steel structure. This significantly reduces the risk of breakage. To prevent product buildup, each intermediate bearing includes continuous flighting.

The plate pack can be disassembled and reassembled without having to remove the screw shafts.

Hanglager systemen

Hanger Bearing Systems Sealing Options for Ball Bearings

Several sealing options are available for ball bearings, including lip seals, oil seals, and mechanical seals. The choice of seal depends heavily on the specific process conditions.

Hanglager systemen

Various Sealing Solutions

Depending on the process, we offer different sealing options for ball bearings such as lip seals, oil seals, and mechanical seals. The choice of a specific seal is largely determined by the nature of the process and the characteristics of the material being conveyed.

Diverse afdichtingsopties

We are happy to help Our company is ready every day to support your critical processes.

Contact us directly

Why Choose Klinkenberg B.V.?

Icon

Top bearing brands always in stock

Icon

Proprietary hanger bearing systems

Icon

Optimal bearing choice for every application

Icon

Suitable for smaller screw diameters

Icon

Reduced bearing load thanks to plate packs

Icon

Can be integrated into existing systems

Icon

Proven concept with long service life

Discuss the possibilities?

Feel free to contact us.

SummaryReliable and Durable Bearing Solutions

Flange bearings are ideal for compact, lightweight, and cost-sensitive applications, whereas pillow block bearings are preferred in heavy-duty environments where maintenance and robustness are key. The right choice depends on operating conditions, installation requirements, and ease of maintenance.

At Klinkenberg B.V., we combine years of experience with innovative solutions to ensure your processes run smoothly and efficiently. Our expertise in bearing systems guarantees reliable and durable performance tailored to your specific needs.

Documentation

Bulk Density Table

Bulk Density Table

FAQ Direct answers to your questions

Quickly find answers to frequently asked questions about Hygienic Screw Conveyors. Our FAQ section helps you make the right choice.

Your question not listed?
Feel free to send us a message with your question.

Contact us

Our bearings are equipped with initial lubrication. For efficient lubrication, lubrication lines can be routed to the side of the foundation.

The plate pack compensates for stress in the screw shafts, minimizes the impact of temperature and environmental factors, and reduces the risk of breakage.

Yes, in ATEX zones the bearings can be equipped with temperature monitoring for added safety.

Regular lubrication is essential. Our systems are designed for easy maintenance and monitoring.

Axial load is typically absorbed by a specific bearing, such as an angular contact ball bearing or cylindrical roller bearing, designed to handle axial forces. At Klinkenberg, this is integrated into the design of our bearing setups.

In corrosive environments, bearings can be made of stainless steel or coated with a special finish. Ceramic or plastic bearings may also be used depending on chemical exposure and temperature.

Higher temperatures can lower lubricant viscosity, which accelerates wear. Special heat-resistant bearings and lubricants are available for high-temperature applications. At Klinkenberg, bearings can be fitted with temperature monitoring to detect issues early.

A single-row roller bearing is more efficient for radial loads, while a double-row bearing can handle both radial and axial loads in multiple directions. Double-row bearings are often used in applications with complex loading.

Insufficient or incorrect lubrication can lead to increased friction, heat build-up, and eventual bearing failure. Automatic lubrication systems or visual inspection points can help minimize this risk.

Service life depends on factors like load, lubrication, material choice, and maintenance. With high-quality materials and proper care, bearings can last for many years even in demanding applications.
