Ribbon Mixers

Ribbon Mixers for Batch Use

Klinkenberg has extensive experience in designing mixing systems. When small amounts of additives need to be added to a larger batch, ribbon mixers are highly suitable. We supply ribbon mixers that deliver a perfect mixing result in a short time. Additionally, our product range includes paddle mixers, ideal for mixing powdery substances and sticky products.
Request a quote
Batch mengers
Batch Mengers

Klinkenberg Ribbon MixerPerfect Mixing Technology Tailored

The Klinkenberg Ribbon Mixer is a solution for homogeneous mixing of dry powders, granulates, and viscous pastes. With an innovative design, high efficiency, and versatile customization options, this mixer delivers unmatched performance across various sectors, including food, pharmaceuticals, cosmetics, and chemical industries.

Key Features of the Ribbon Mixer

Exceptional Mixing Performance

  • Precision up to 1:250,000:
    Even a small quantity of several grams is perfectly mixed in a batch.

  • Short mixing time, low energy consumption:
    The quad-dimensional mixing process increases efficiency without extra energy demand.

Innovative Operation

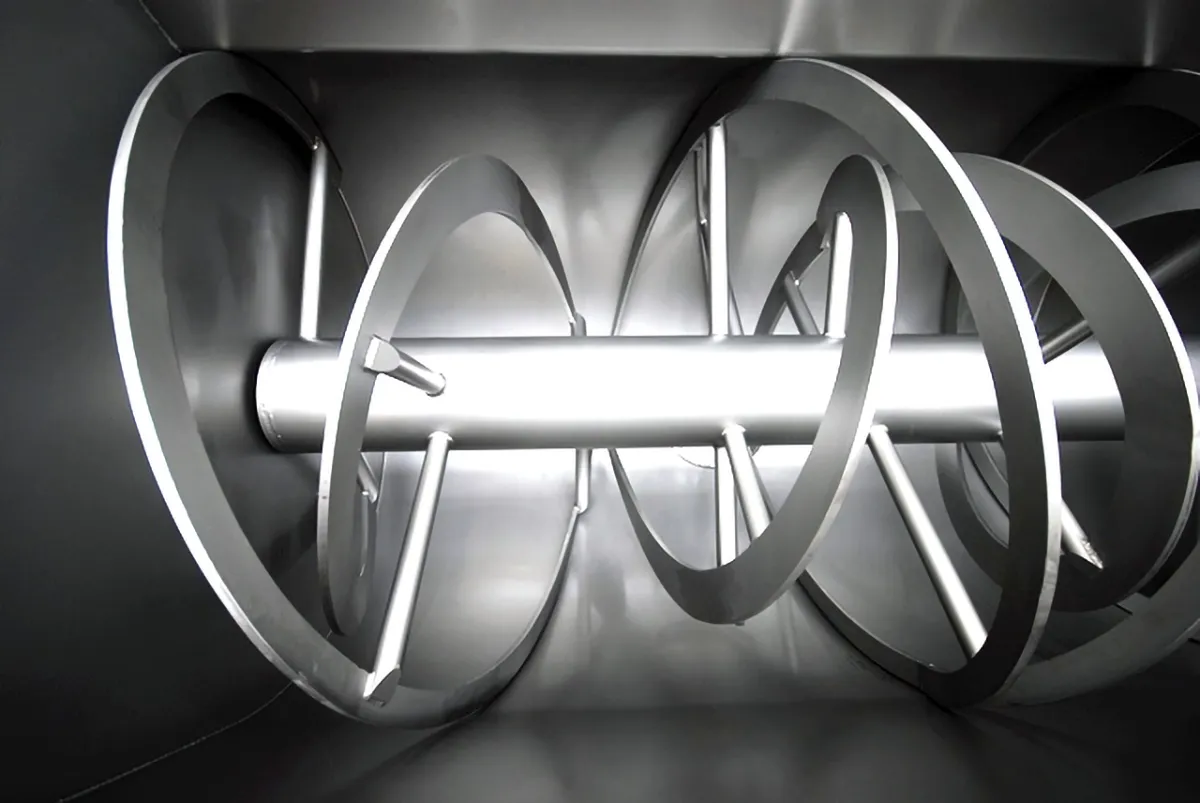

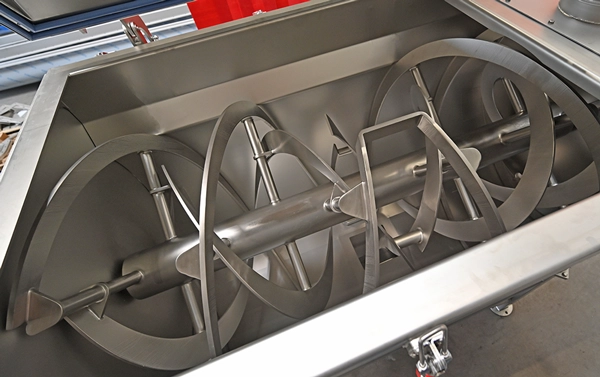

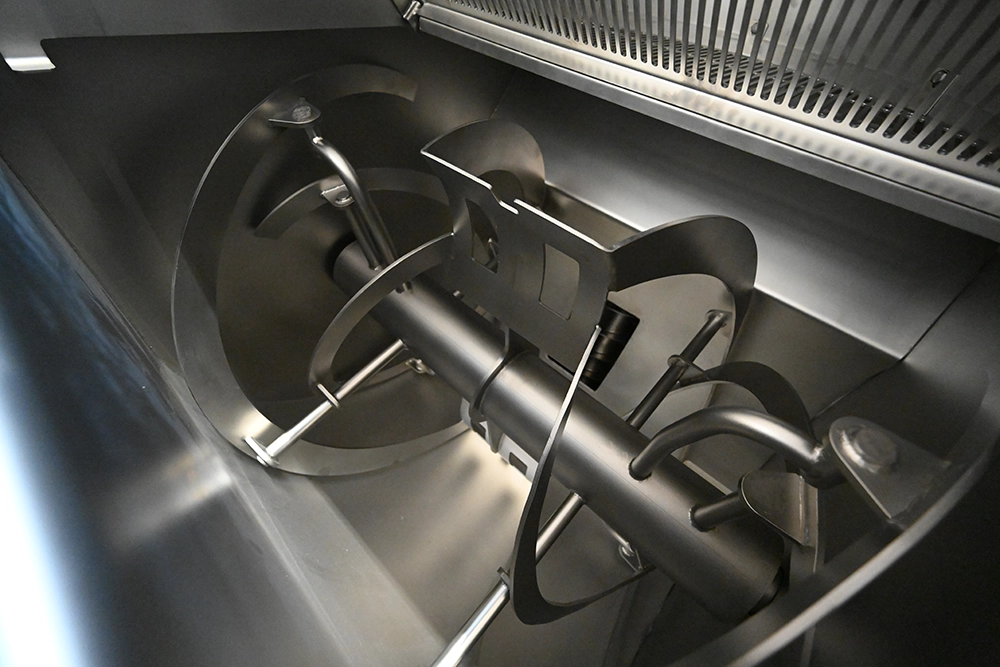

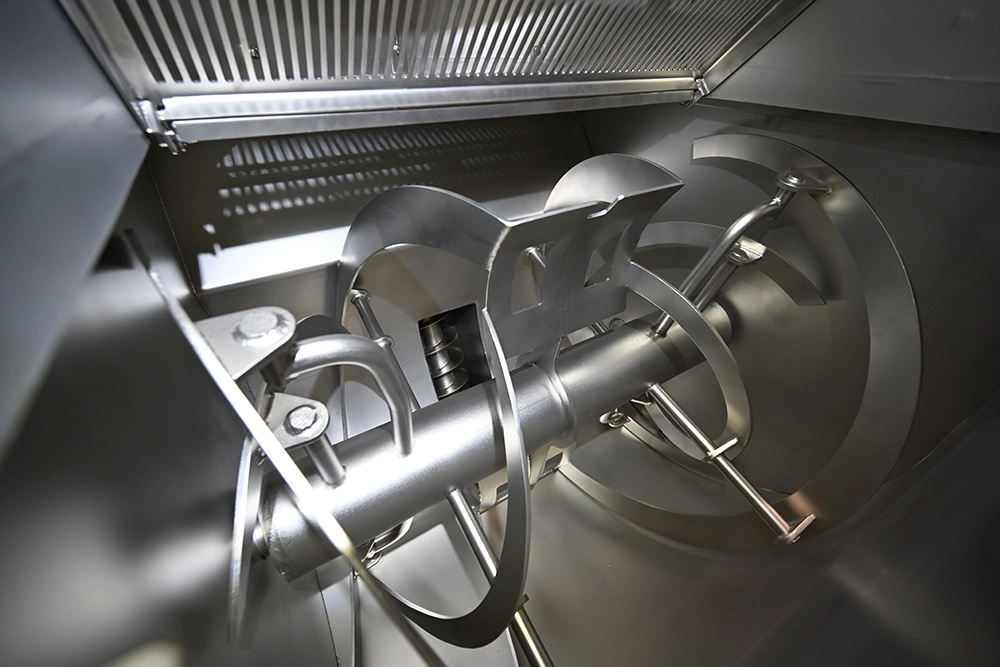

The mixer uses a quad ribbon shaft in a U-shaped mixing trough:

  • Horizontal:
    Materials move toward the ends and return to the center.

  • Vertical:
    Materials are lifted along the walls of the mixing tub and fall back down by gravity.

This process ensures consistent mixing, even for challenging applications.

Easy Operation and Hygienic Design

  • Easy loading and discharge:
    Materials are added from the top, while a dust-free discharge valve ensures quick, clean emptying.

  • Special design for food applications:

  • Optimized discharge valve: For fast, dust-free, and effortless emptying.
  • Lid with counterweight or gas springs for easy manual operation.

Versatile Options and ExtensionsThe Klinkenberg Ribbon Mixer can be customized to specific process requirements:

Drive Systems

  • Gear motors (direct drive).
  • Chain drives (indirect drive).

Thermal Functionalities

  • Heating or cooling jacket for process temperature control.

Spray Nozzles for Liquid Addition

  • Ideal for adding liquids during mixing via integrated spray nozzles.

Custom Ribbon Blades

  • Standard Ribbon: For general applications.
  • Interrupted Ribbon: For viscous or sticky materials.
  • Continuous Ribbon: Suitable for continuous processing.

Material Selection

Contact parts are available in various materials:

  • Stainless Steel (SS304, SS316/316L): Suitable for hygienic processes.
  • Titanium or Hastelloy: For abrasive or corrosive applications.
  • Steel

Technical Advice or Discuss Possibilities?

Our engineers are happy to help you develop a tailored solution.

Send Your Inquiry

Batch Mengers
Batch Mengers

The Versatility of Ribbon Mixers

Batch processing is preferred in many industries and applications—either because it allows individual batches to be traced without compromising production capacity or creating system bottlenecks, or due to specific batch operation requirements.

Ribbon mixers can be designed for both batch and continuous operation. Klinkenberg's batch-type ribbon mixers can be built to handle product volumes of up to 10 m³. Their versatility in mixing solids, combined with the ability to perform heating, cooling, coating, and other processes, makes them a highly popular mixing solution.

Advantages at a Glance

Icon check

Unmatched Mixing Quality

Suitable for complex and highly precise mixing tasks.

Icon check

Flexibility

Adaptable to a wide range of applications and industries.

Icon check

User-Friendly

Easy to operate and maintain.

Ribbon Mixers with Quad-Ribbon Mixing System

Short mixing times at low rotational speeds result in a homogeneous mix with minimal degradation of the base material. The product is in constant motion, ensuring optimal blending. Free-flowing powders can be dosed volumetrically or, for higher precision, fed via a gravimetric system.


Optimized Design for Maximum Mixing Performance

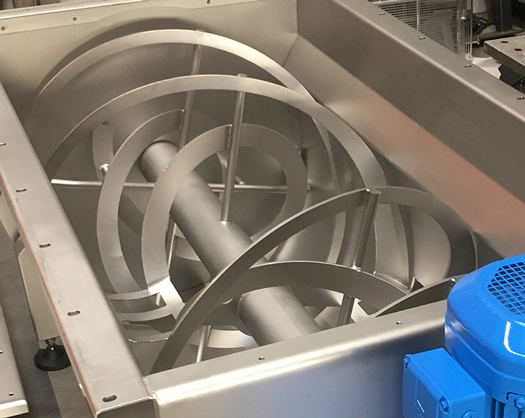

Klinkenberg ribbon mixers feature a U-shaped trough with one or two omega-shaped end sections. This geometry reduces dead zones and boosts efficiency. A single or twin horizontal shaft—supported by external bearings—rotates inside the mixing chamber, equipped with the quad-ribbon system. This setup makes the mixer suitable for a wide range of applications.

  • Suitable for fragile materials
  • Long lifespan with low maintenance
  • High and consistent mixing quality
  • Ribbon and paddle combination available
Klinkenberg

We are happy to help Our company is ready daily to support your critical processes.

Request a quote

Easy Operation and Hygienic Design

Simple loading and discharge: Materials are added from the top, while a dust-free discharge valve ensures fast and clean emptying.

Specially designed for food applications:

  • Optimized discharge valve for quick, dust-free and effortless emptying.
  • Lid with counterweight or gas springs for easy manual operation.

Unique Features

  • Additional discharge options: Multiple discharge valves or outlets for flexible emptying.
  • High capacity: Continuous operation possible for non-stop production.
  • Custom designs: Tailor-made frames and dimensions according to customer requirements.

Technical Specifications

The ribbon mixer is available in capacities ranging from 100 to 10,000 liters, with flexible specifications:

  • Motor power
  • Rotation speed
  • Dimensions

Applications of the Ribbon Mixer The versatility of this mixer makes it ideal for use in:

  1. Food Industry:
    For mixing salads, spice blends, and baking powders.
  2. Pharmaceutical Industry:
    Precision and hygiene for medicinal powders.
  3. Chemical Production:
    For coatings, polymers, and cleaning agents.
  4. Cosmetics:
    For creams, lotions, and other viscous products.

Why Choose the Klinkenberg Ribbon Mixer?

With its innovative design, extensive customization options, and proven performance, the Klinkenberg Ribbon Mixer is a smart choice for companies looking for an efficient and reliable mixing solution.

Contact us today for more information or a non-binding quote.

Request a Quote

Variants

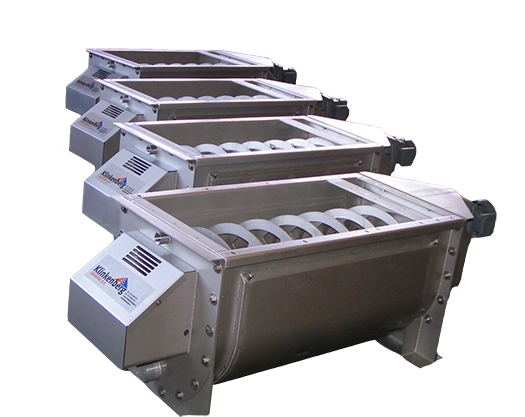

Menger verwarming pindapasta

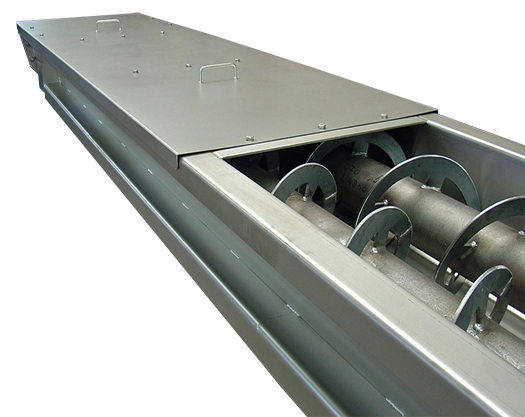

Dubbele lintmenger non food

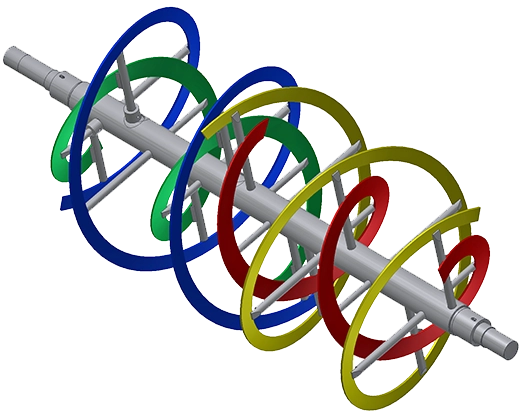

Quad lintmenger principe

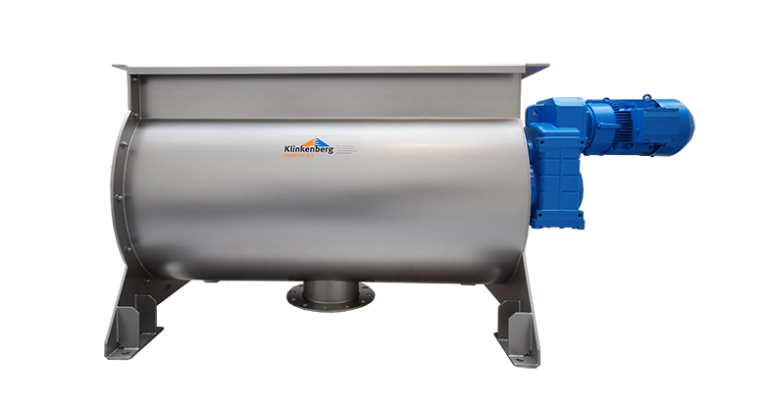

Quad lintmenger materiaal RVS216


Documentation

Bulk density table

Bulk density table

Expressed in kg/m³ and lbs/ft³

View and download

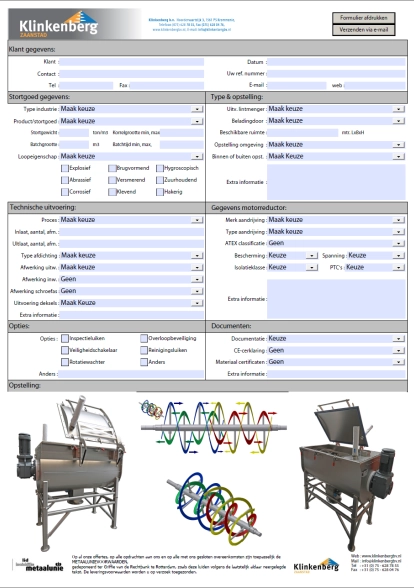

Questionnaire batch ribbon mixer

Questionnaire

View and download

FAQ Direct answers to your questions

Find quick answers to frequently asked questions about Ribbon Mixers. Our FAQ section helps you make the right choice.

Didn't find your question here?
Feel free to send us a message with your inquiry.

Contact us

The combination of a precision mixing ratio of up to 1:250,000, short mixing times, and extensive customization options makes this mixer a leading choice for industrial mixing applications.

The mixer is suitable for dry powders, granulates, and viscous pastes. It can also be adapted for specific materials such as abrasive or corrosive substances.

Yes, the mixer offers hygienic features such as a motorized tilting mechanism and a counterweighted lid for user-friendly operation.

Yes, integrated spray nozzles allow liquids to be added during the mixing process.

The Ribbon Mixer is available in models ranging from 100 to 10,000 liters.

The mixer supports gear motors, direct and indirect drives, reducers, and chain transmissions.

The mixer is designed for easy maintenance, with convenient access to key components and a robust construction for long service life.

Yes, the Ribbon Mixer can be adapted for continuous operation, with simultaneous input and output. This is ideal for high-throughput applications.

Absolutely. The mixer can be equipped with a heating or cooling jacket, allowing for processes with specific temperature requirements.

Depending on the application, the mixer can be built from carbon steel, stainless steel (SS304, SS316/316L), titanium, Hastelloy, or duplex steel.
