Z-Lamella Seals in Bulk Handling Machines

Function, Applications and Considerations

Z-lamella seals are a crucial component in bulk handling machines such as screw conveyors, mixers, breakers, and dosing screws. They are specifically designed to effectively seal powders, granulates, and other solid materials within the machine, while allowing moving parts like screw shafts to rotate smoothly. Below is a technical overview of the function, applications, advantages, and disadvantages of Z-lamella seals in this context.
Discuss the possibilities
Z-Lamel Afdichtingen in Bulkhandlingmachines

The Advantages and Disadvantages of Z-Lamella SealsPerformance evaluation and application limitations in industrial environments

Advantages

  1. Wear resistance
    Suitable for abrasive materials such as sand, cement, and other granulates.

  2. Easy installation
    Often compatible with existing shaft sizes and housings.

  3. Cost-effective
    Extends bearing lifespan and reduces maintenance costs.

  4. Flexibility
    Performs well in both horizontal and vertical machine configurations.

Disadvantages

  1. Limited sealing pressure
    Not suitable for high-pressure or liquid applications.

  2. Wear sensitivity at very high speeds
    At extreme rotational speeds, the seal may wear and lose efficiency.

  3. Not completely leak-tight
    Although effective, minimal leakage may occur with ultra-fine powders.

  4. Temperature limitations
    Not all materials are suitable for high temperatures, which may lead to deformation or hardening.

  5. Relatively high compressed air consumption
    Compared to other sealing methods.

Operation of Z-Lamella Seals

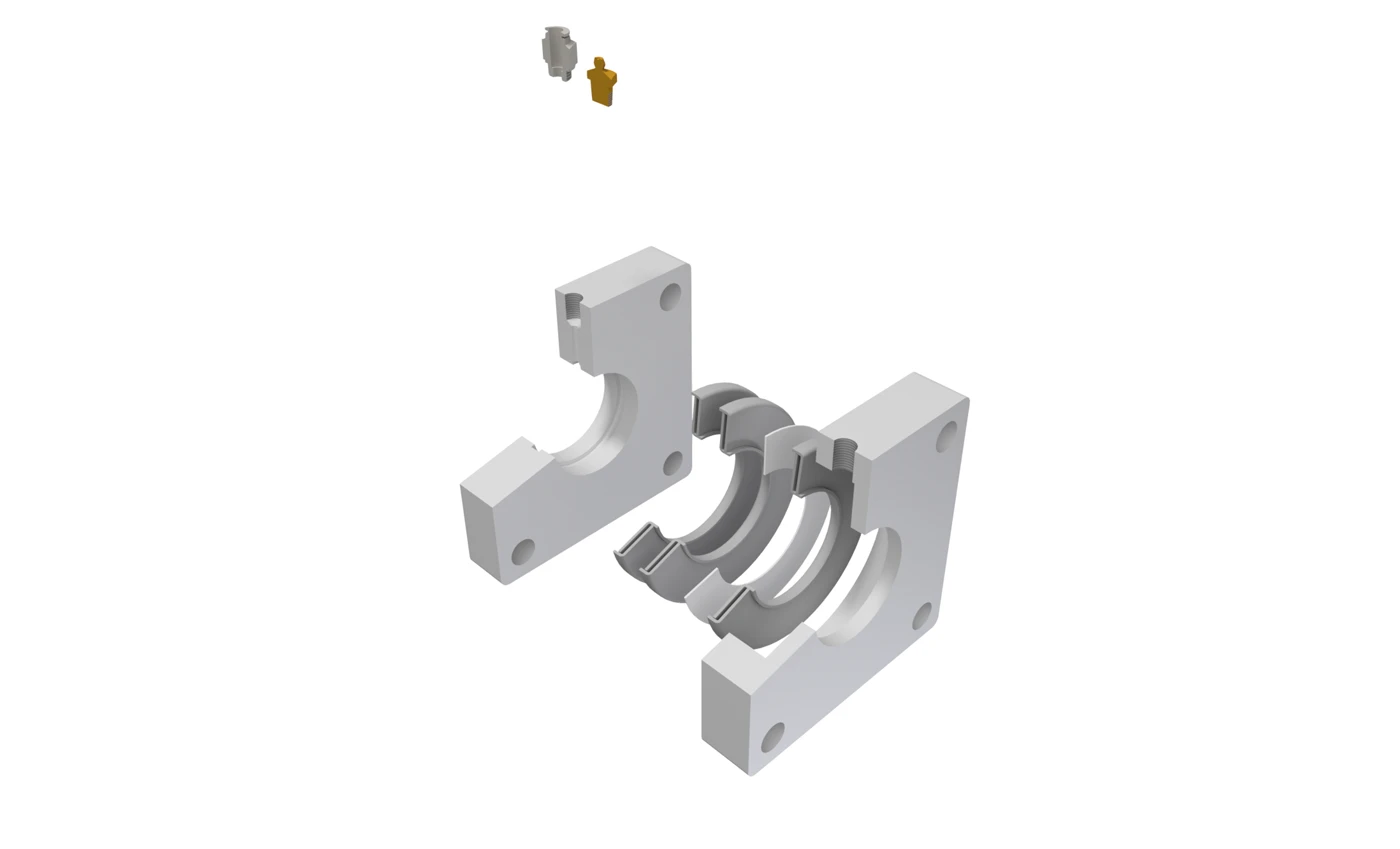

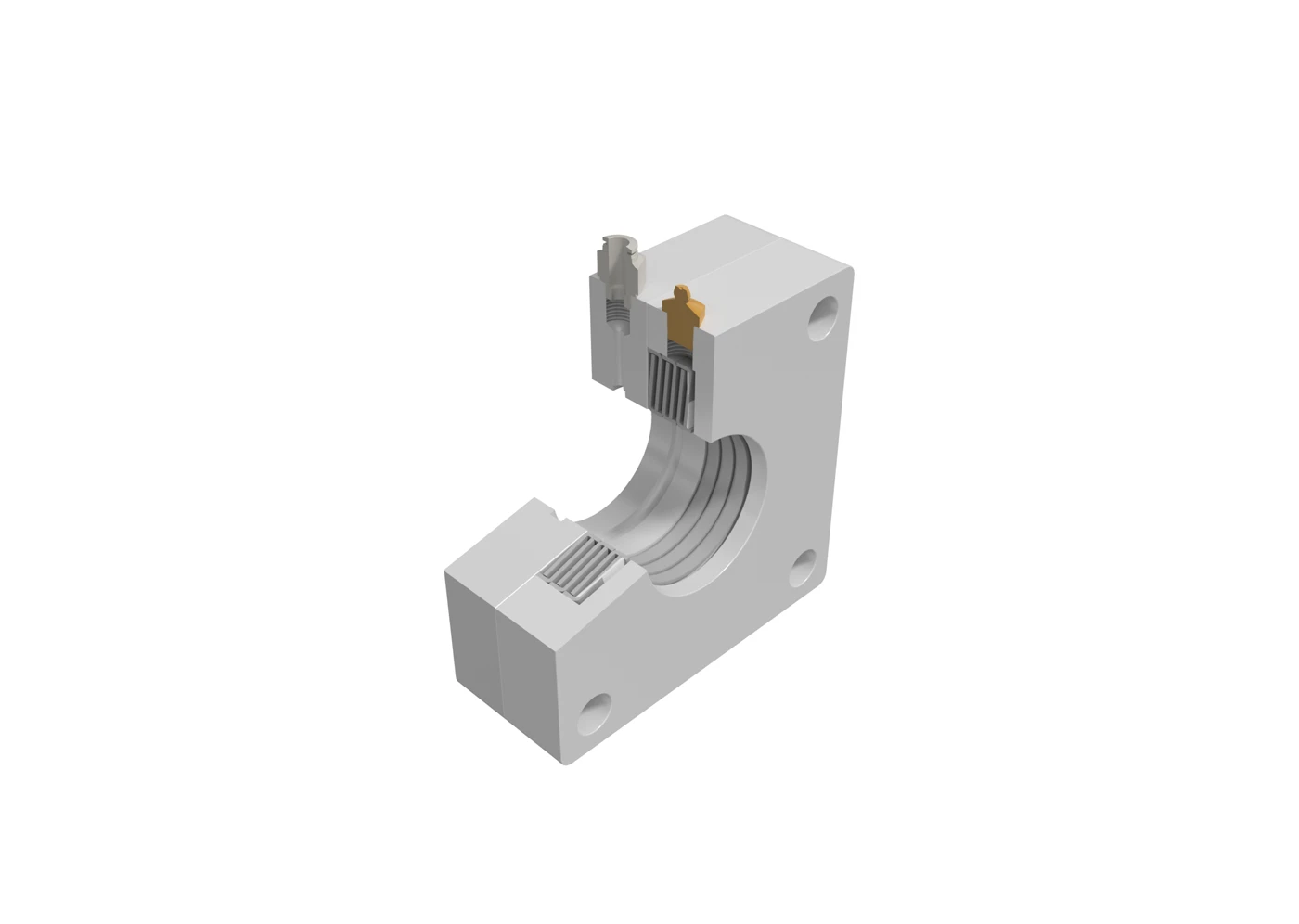

Z-lamella seals consist of overlapping lamellae arranged in a zigzag or Z-pattern. This design provides multiple barriers against the passage of material and dust. The lamellae are typically made of a combination of steel and elastic materials. The Z-pattern creates a labyrinth structure, which offers the following advantages:

Effective Barrier

The Z-pattern forces particles to follow a complex path, minimizing leakage.

Freedom of Movement

The seal allows for rotational or axial movement of the screw shaft without causing significant friction.

Self-Cleaning Effect

Due to vibration and motion, small particles are often displaced out of the sealing zone.

Alternatives Alternatives to Z-Lamella Seals

  1. TAMAR Seals:
    TAMAR seals deliver enhanced performance in environments where complete sealing is essential, such as with fine dust or liquid media. They often combine an advanced mechanical seal with a flexible packing gland system to minimize leakage and increase pressure resistance.

  2. Labyrinth Seals with Lubrication Layers:
    These seals operate using a complex labyrinth design, where lubricants are added to reduce both friction and material loss. They are suitable for high-speed applications and reduce wear, though they may require more maintenance.

  3. Mechanical Seals:
    Mechanical seals are engineered for applications requiring extremely high pressure or fluid-tight sealing. They offer near-total sealing and have a longer service life in demanding environments, but tend to be more expensive to purchase and install. Additionally, these seals require significant aftercare and maintenance.

Klinkenberg

Use of Barrier Air in Z-Lamella Seals

An important consideration with Z-lamella seals is the use of barrier air. Barrier air is often used to create positive pressure in the sealing zone, preventing the ingress of particles and dust. While effective, the use of barrier air can increase operational costs, especially when high air volumes or constant pressure are required.

Klinkenberg

Possible Solutions to Reduce Barrier Air Consumption

  • System Optimization:
    Ensure air pressure and volume are precisely matched to process requirements.

  • Advanced Monitoring:
    Use sensors and control valves to dynamically manage air consumption.

  • Alternatives Without Barrier Air:
    Consider seals such as mechanical or labyrinth designs that do not require air support.

Klinkenberg

ConclusionChoosing the Right Seal: Balancing Cost and Performance

While Z-lamella seals are a reliable standard in the bulk handling industry, it is important to strike the right balance between cost and performance. For applications where air purge consumption is a significant cost factor or where complete sealing is required (due to internal pressure), alternative sealing technologies may offer a better solution. A thorough evaluation of operating conditions and a cost-benefit analysis are essential to selecting the optimal sealing solution.
