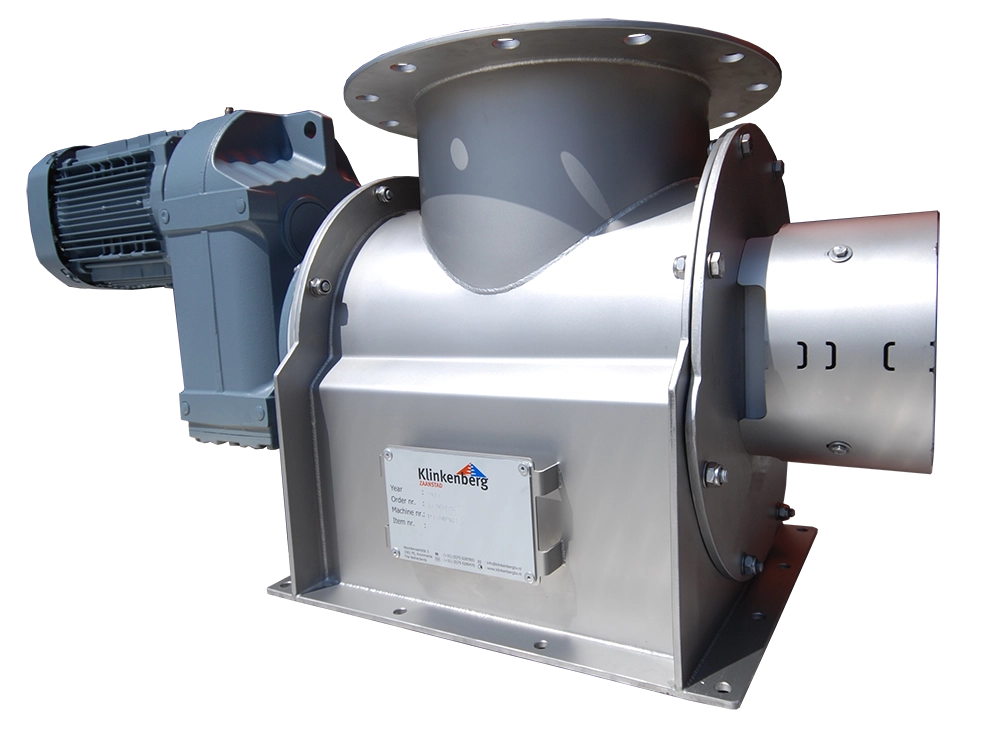

Pin Breaker

At Klinkenberg, we understand how crucial it is for bulk materials to be free from lumps and hard agglomerates. That’s why we’ve developed our own range of lump breakers that use breaker pins to efficiently reduce coarse materials. Thanks to our pin breaker technology, any product can be reduced to a manageable size of 10 to 15 mm.

Request a quote

Efficient reduction of coarse lumps

The Pin Breakers — or Lump Breakers — from Klinkenberg are designed to reduce coarse, difficult-to-handle bulk materials into more manageable agglomerates of 10 to 15 mm. To achieve this, Klinkenberg Lump Breakers use powerful pulverization technology, making them highly effective across a wide range of products.

Other types of breakers we offer include Knife Lump Breakers and Sweeper Lump Breakers — a complete range of tools for breaking down large, hard lumps for easier handling and processing of bulk materials.

Need technical advice or want to discuss the possibilities?

Simple device
Widely applicable
Reduces down to 15~20 mm
Cost-effective choice

Testing available

Extensive experience

Low energy consumption

High capacity

Why choose our pin breaker? Reliable solution for agglomerates in various processes

Pin breakers have been used for years in industries where agglomerates disrupt production processes. Whether dissolving powders in liquids or transporting material via pneumatic or vacuum systems – minimizing agglomerates is often critical.

Always the right configuration Flexible setup and testing options for optimal performance

The pin breaker is designed to be tailored to each specific process. Klinkenberg offers various pin configurations and extensive testing options to help determine the ideal setup together with you.

We are happy to help Our company is ready every day to support your critical processes.

Request a quote

The Pin BreakerOptions and Features

The Pin Breaker can achieve relatively high capacities at a low rotational speed. The capacity depends on the percentage of agglomerates that need to be broken within the offered volume flow.

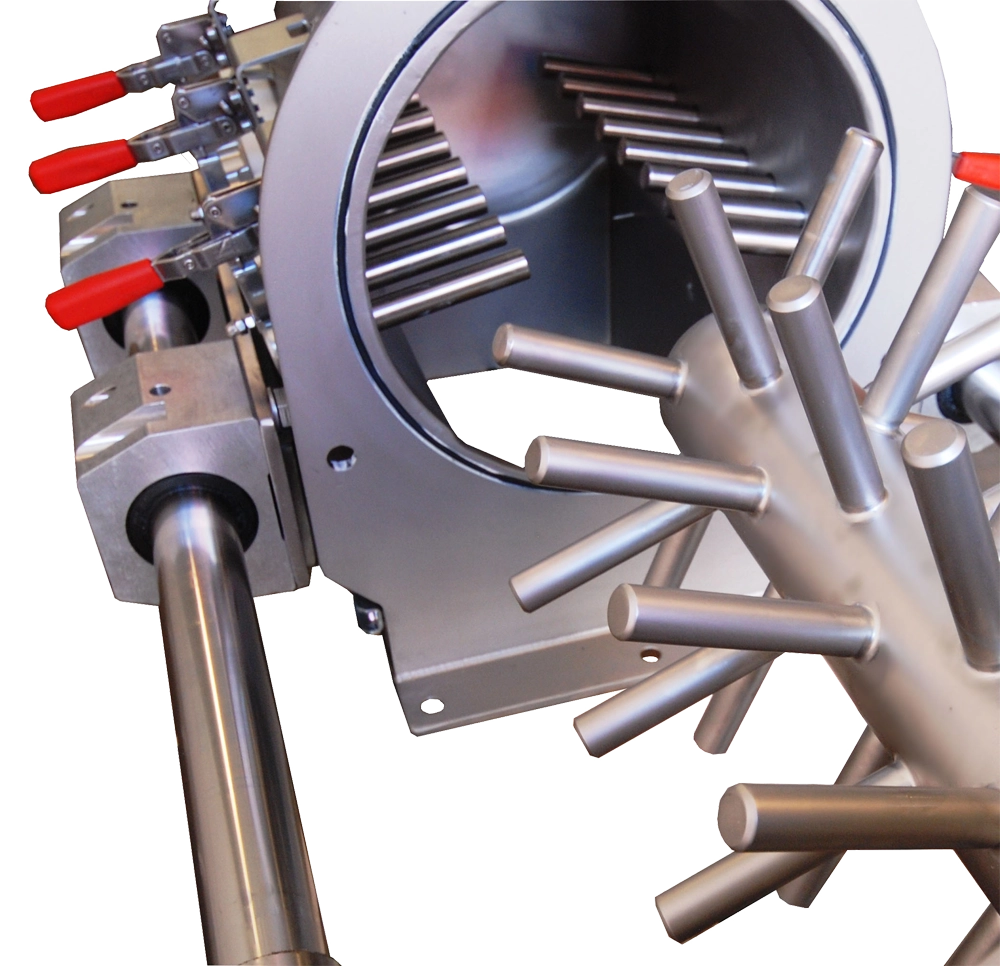

Designed for quick cleaning
Built in accordance with the latest EHEDG guidelines
Available with ATEX certification
Screen deck available in various designs

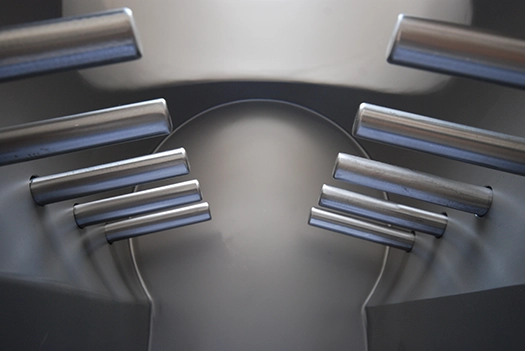

Stator breaker pins are quickly interchangeable
Material options available

Applied Techniologies We always select the right technology for your process

Klinkenberg engineering includes the following variations:

Innovation in Every Screw Movement

If you'd like to learn more about the underlying or applied technologies for screw conveyors—such as bearing systems, sealing, safety, ATEX compliance, desired finishes, or packaging of purchased machines—feel free to contact us.

Discuss the possibilities Discover more

Variants

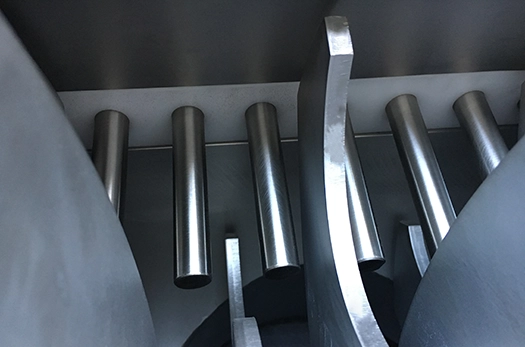

Knife and pin combination

Pin & underlying knife grid

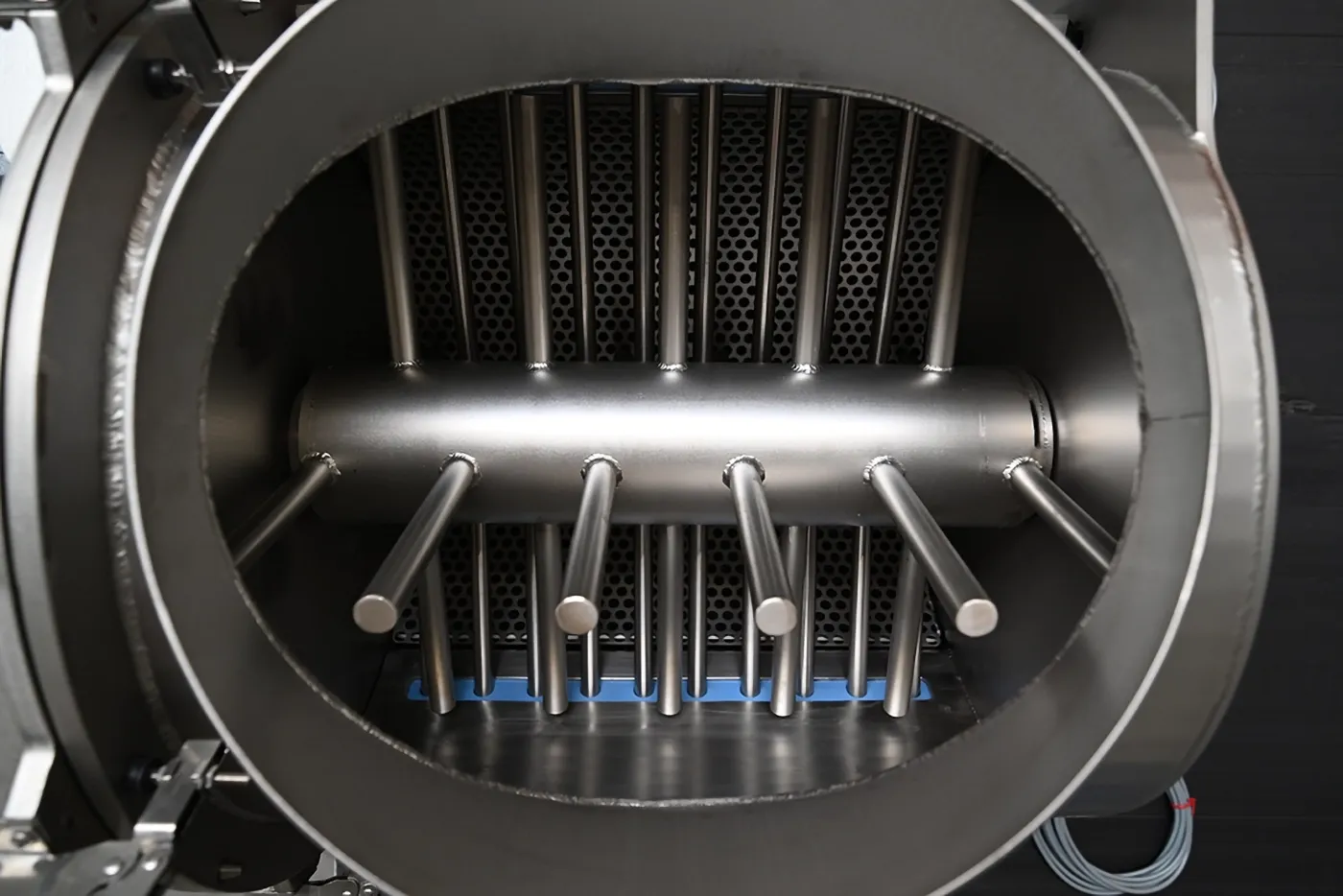

Internal unit with pin grid

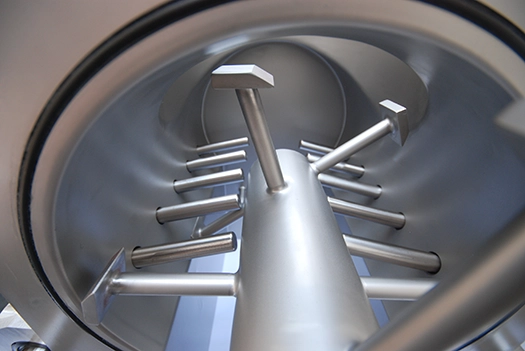

Pins with hammer combination

Documentation Exclusive with a personal design

Knife Breaker & Pin Breakers

Product Brochure

View and download

Bulk density table

Expressed in kg/m³ and lbs/ft³

View and download

FAQ Direct answers to your questions

Quickly find answers to frequently asked questions about Pin Breakers. Our FAQ section helps you make the right choice.

Don't see your question listed?
Feel free to send us a message.

The Pin Breaker is designed to pulverize semi-hard agglomerates, coarse particles, and lumps in bulk materials, including chemical powders, food ingredients, and pharmaceutical substances.

A single-shaft Pin Breaker has one rotating shaft with pins and is suitable for less demanding applications. A double-shaft version has two parallel rotating shafts, offering more power for harder and larger lumps.

Yes, the Pin Breaker can be designed according to ATEX guidelines for use in explosive environments, with spark-proof materials and explosion relief provisions.

This depends on the specific configuration, but typically lumps and agglomerates up to 100 mm in diameter can be reduced. After processing, particle sizes range from 15 to 20 mm or smaller, depending on the breaker inlet size.

The pins can be made from wear-resistant materials such as hardened steel or tungsten carbide, and optionally coated to extend service life.

Yes, the Pin Breaker can be easily integrated with other systems such as Dosing Screws, vibrating screens, and conveyors, depending on process requirements.

The Pin Breaker can be driven by an electric motor with direct drive or via a gearbox for controlled power transmission.

Yes, the breaking capacity can be optimized by adjusting the rotation speed, pin spacing, and feed control.

The breaker can be equipped with variable speed and an automatic reverse function to minimize blockages. Additionally, self-cleaning pins can help dislodge sticky material.

By default, the Pin Breaker is designed for dry materials, but it can be adapted for slightly moist or hygroscopic products using special materials and coatings.
