Efficient shaftless transport, ideal for sludge, waste, and difficult-to-handle bulk materials.

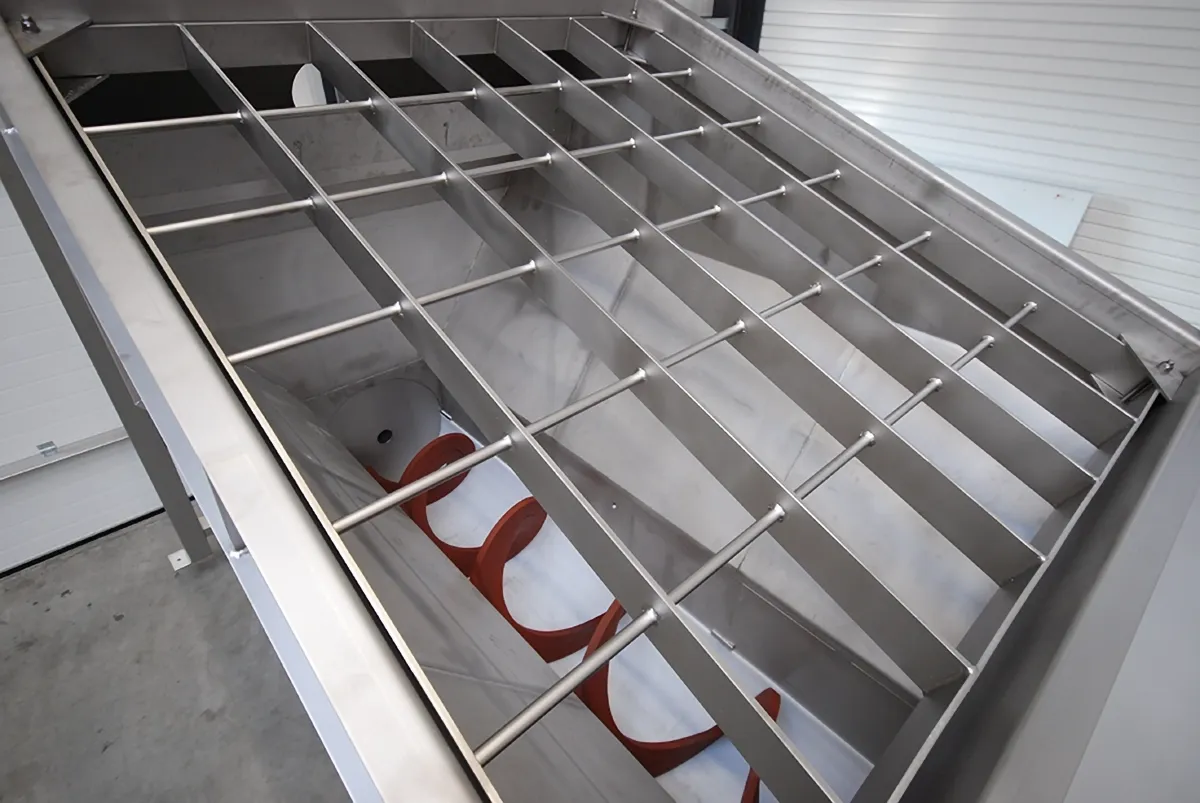

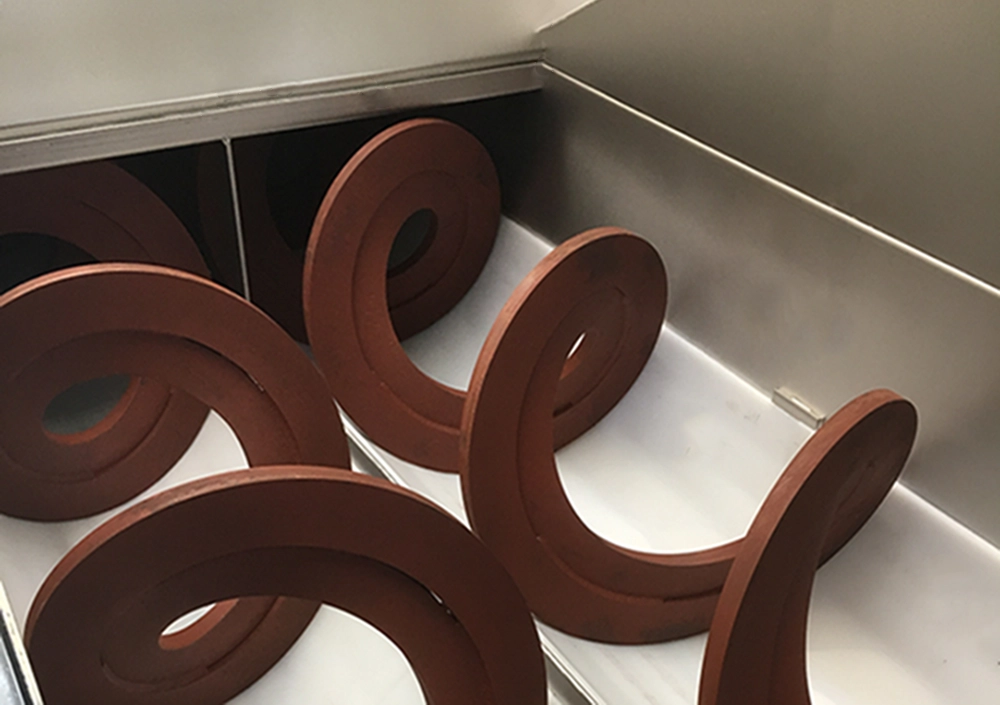

Spirals offer a smart solution for conveying poorly flowing materials. They are especially suitable for applications such as sludge bunker emptying, thanks to their open design and operational flexibility. The absence of a central shaft reduces the risk of clogging and wear.

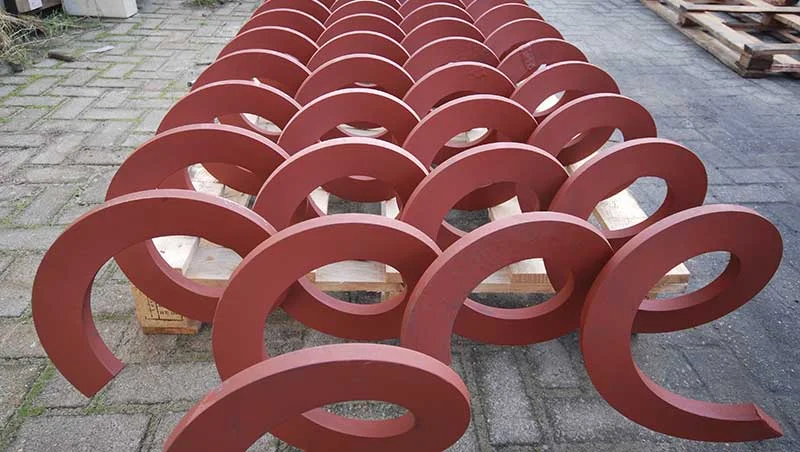

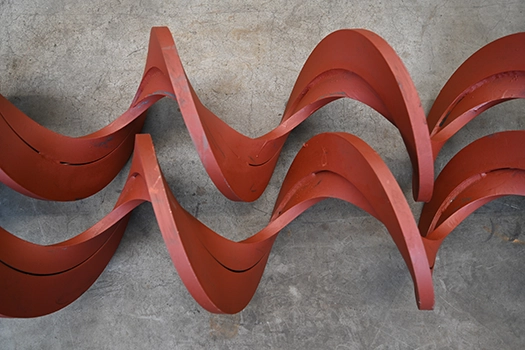

Klinkenberg supplies ribbons in various versions and materials, including steel, stainless steel 304, and stainless steel 316L. With options such as auxiliary spirals and reinforced constructions, we can precisely tailor the system to your process needs.
Klinkenberg offers various systems for extracting products. One of these is a spiral. Although the possibilities here are somewhat more limited than with our screw flights and screw ribbons, a spiral is extremely suitable for emptying sludge bunkers. Here you can read about the advantages of our ribbons.

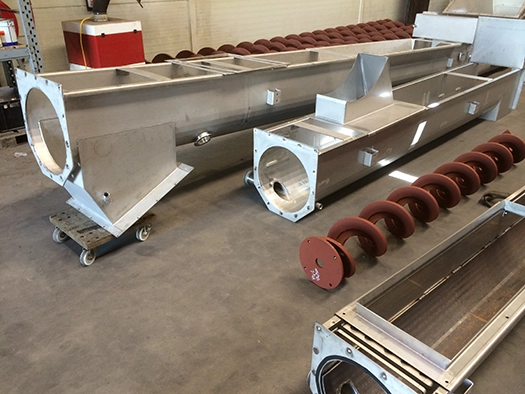

Shaftless screw conveyors play a role in processing sludge and waste streams, but also in the food industry and horticulture. We design the spiral specifically according to your requirements, taking material and dimensions into account.
Shaftless screw conveyors enable transport at angles up to 30°. For some products, shaftless ribbons can even handle vertical transport without issues. Installing additional auxiliary spirals prevents backflow of the product. If you are looking for specific options for shaftless screw conveyors, our sales advisors will be happy to discuss them with you.
Screw flights have limitations regarding material, dimensions, and design. The advantage of screw flights is that they save time during the assembly of the screw shaft. Time is saved because the flight can be wrapped around the tube in one go, requiring only a limited number of seams to be welded. The downside is that the flight becomes conical due to deformation; the thickness on the inside of the flight is approximately 2 to 3 times thicker than the tip of the flight, which limits its applicability for conveying abrasive products.
Endless screw flight in carbon or stainless steel, with tapered thickness from the core tube to the tip of the flight, with tolerances that comply with international standards. The screw flight is available loose or pre-mounted on the core tube according to the designs, requirements, and tolerances of the customer. Normally available from stock, they are supplied in lengths from 1 to 3 meters; special lengths available on request.
Would you like to learn more about the underlying or applied technologies for screw conveyors, such as bearings, seals, safety, ATEX, desired finishes, or packaging of purchased machines? Feel free to contact us.
